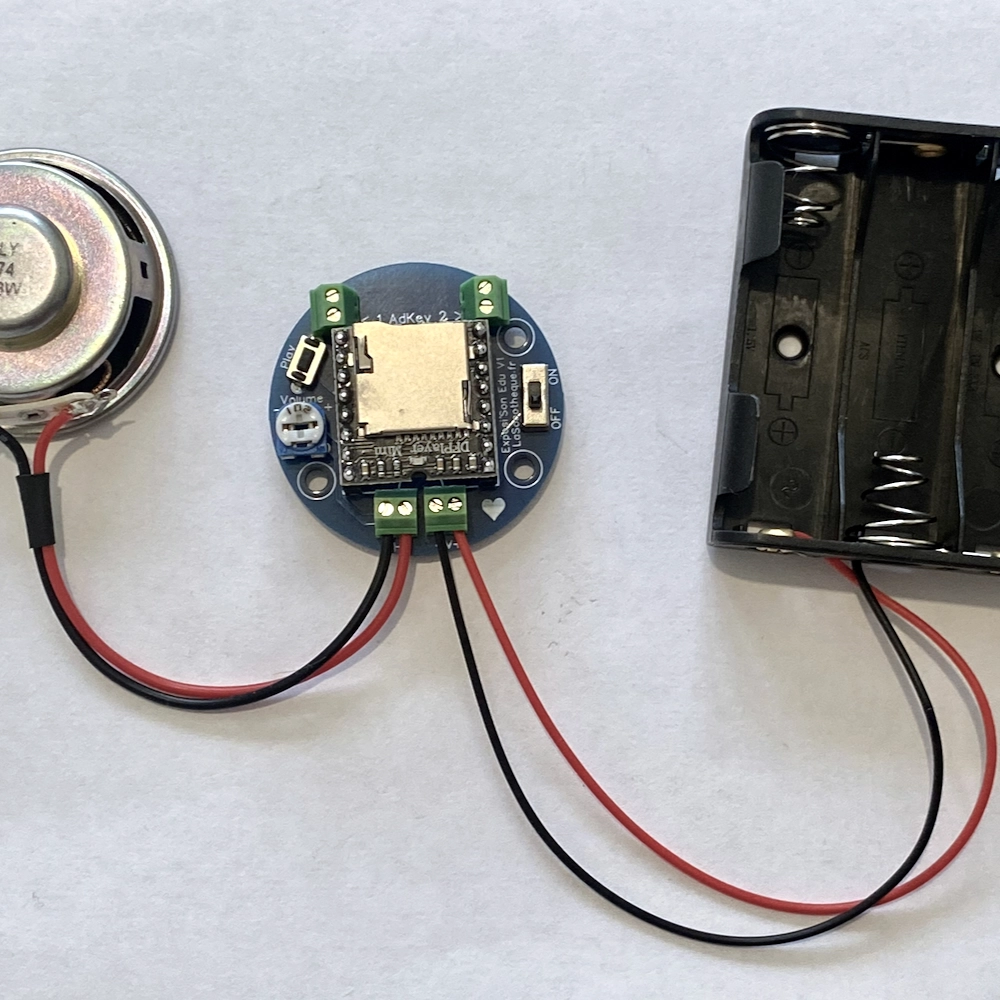

Exposi'Son (Kit)

Additional information

In detail

Warning

Since the module is completely bare, it’s up to you to add the accessories and build a small enclosure if you wish. So make sure that nothing conductive touches the printed circuit board, not even the metal frame of a loudspeaker. There is a risk of a fatal short circuit for the Exposi'Son!

Power supply

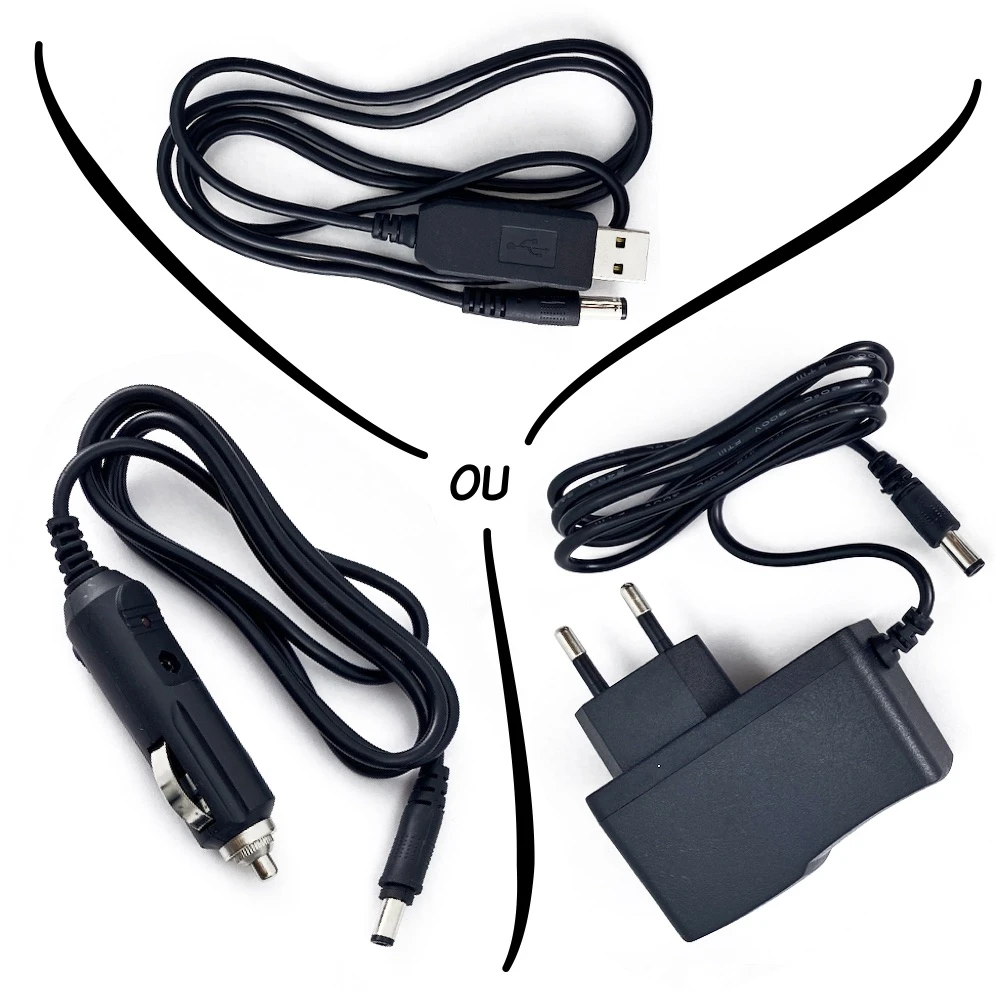

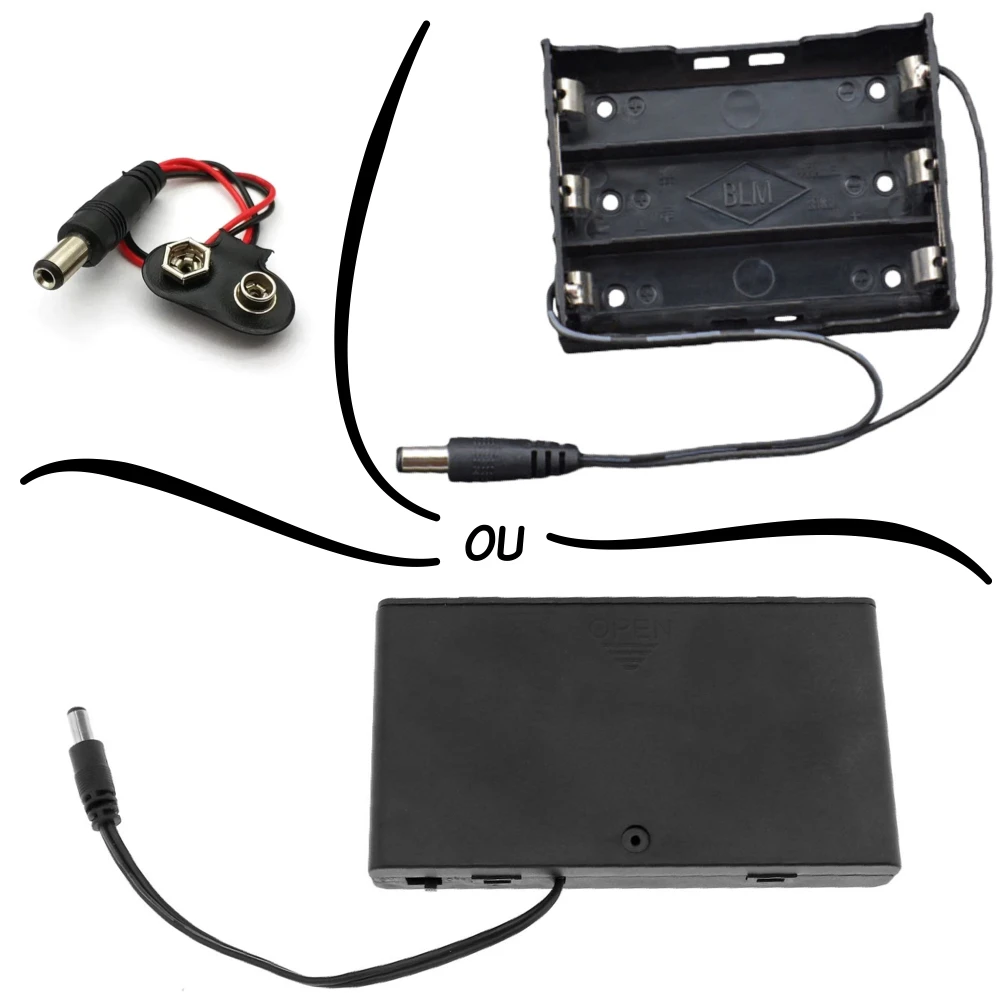

For optimal runtime, I recommend powering it via USB. Otherwise, use rechargeable batteries. For environmental and economic reasons, I NEVER recommend alkaline (non-rechargeable) batteries. They’re cheaper, but disposable…

Speaker or resonator?

Everyone knows regular loudspeakers. A resonator, however, is a kind of speaker that must be glued to a solid surface (glass, wood, cardboard, plastic, etc.), which it makes vibrate. That surface acts as the diaphragm. It’s an ideal solution for playing sound without showing a visible speaker.

Expandable

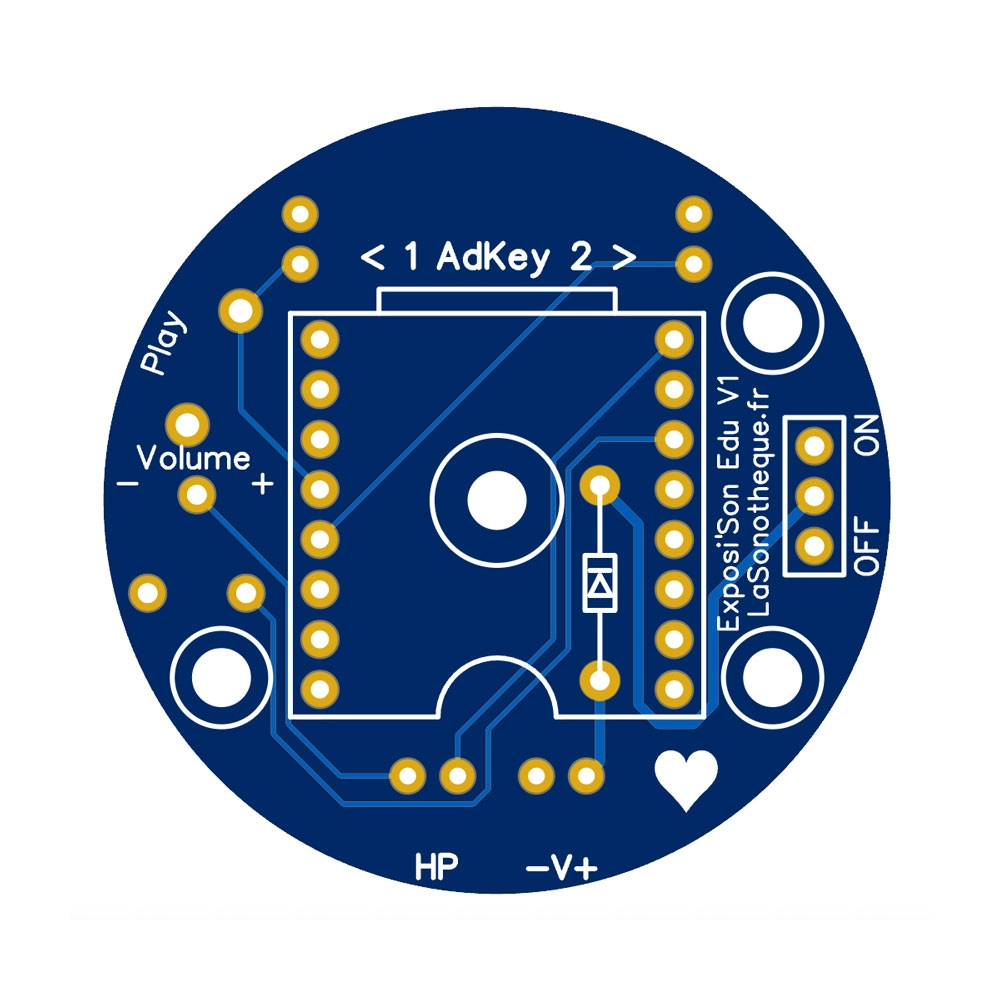

The module has two screw terminals labeled “1” and “2” on the board: these are “AdKey1” and “AdKey2”. You can connect several push buttons to them to control the player. To make things easier, I created the “Exten'Son” module, which lets you build this setup without any particular technical knowledge. But if you want to handle it yourself, you’ll find more information in the manual.

And furthermore

If you’d like to understand how it works, see the user manual. To design your own module, take a look at my guide "Building a sound box".

I designed the device entirely myself, from the PCB layout right through to soldering the components. Each unit is hand-assembled by me.

So if you run into any problems, have questions, or need modifications for your specific project, contact me.

Technical specifications

• User manual
• Power supply:
  • Battery holder for AAA cells/batteries (not included)
• Storage: “MicroSD” or “TF” card (sold separately), up to 32 GB
• Formats: .mp3 and .wav
• Channels: mono (left and right mixed)
• Playback via push button:
  • First file, played once
• Power and impedance:
  • 3-watt amplifier into 4 Ω when chosen with speaker or resonator
• Volume: analog, adjustable with a screwdriver
• Audio outputs (choose one):

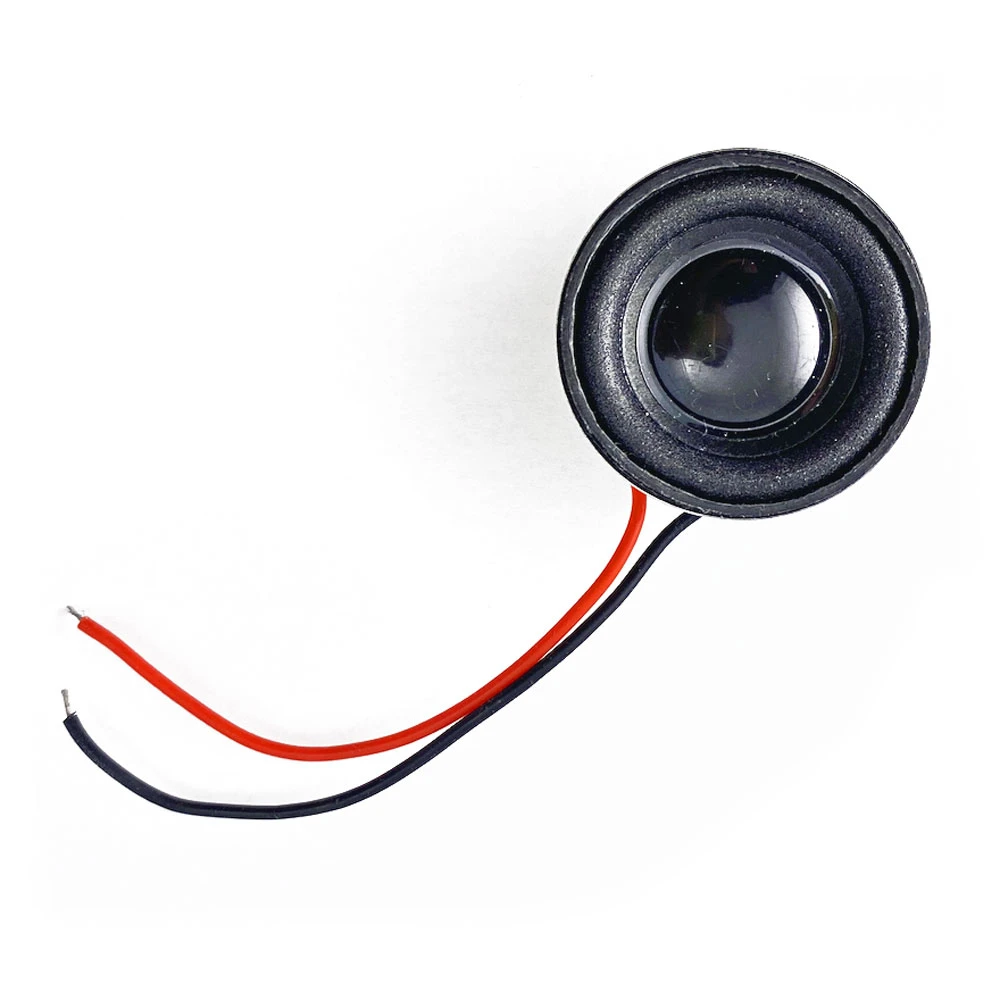

  • 3-watt speaker (included)

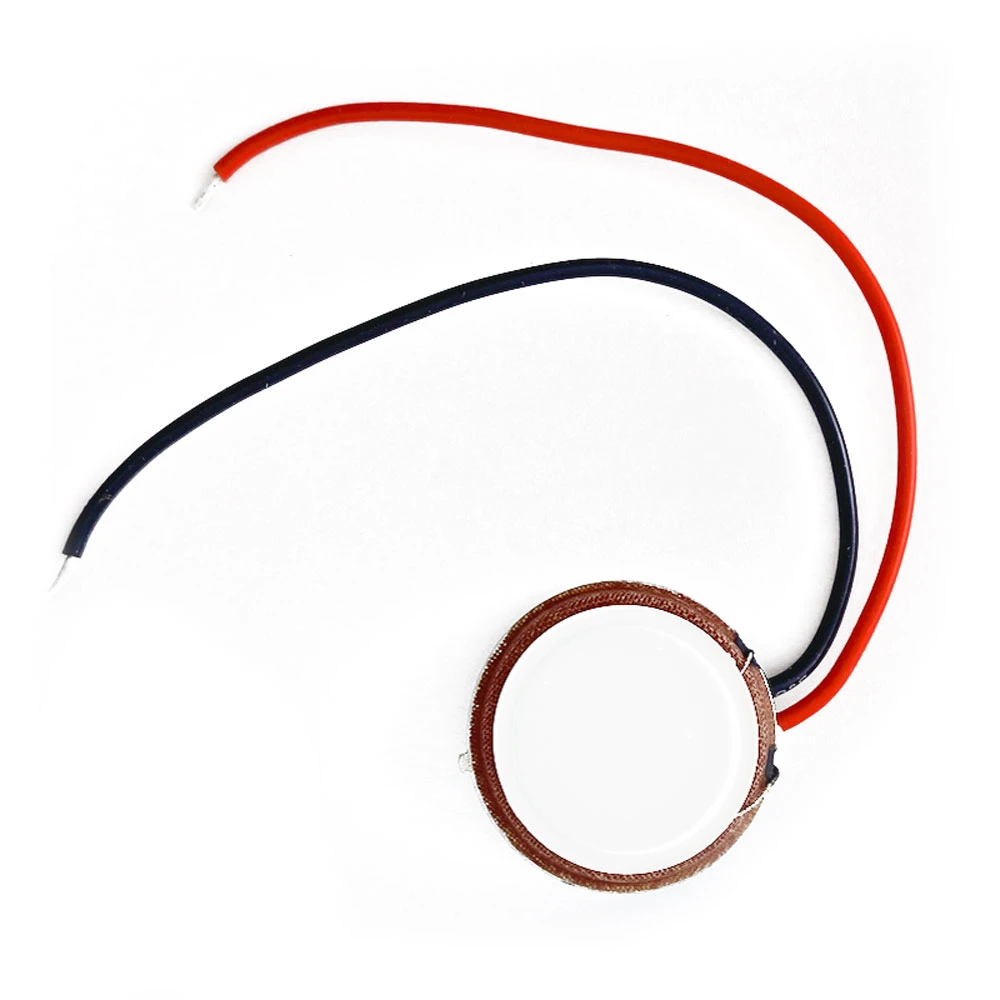

  • or 3-watt resonator (included)
• Current draw: between 10 mA and 20 mA
• Dimensions: 40 mm in diameter, 20 mm thick. Mounting hole details: see last image.
• Sensitive to moisture and rain: for indoor use or well-protected installations only.
• Handmade by myself

Sold separately (optional)

• “Exten'Son” module, for external control
• MicroSD card, to store your audio files
• Batteries or rechargeables AA (formerly LR06) and AAA (formerly LR03)

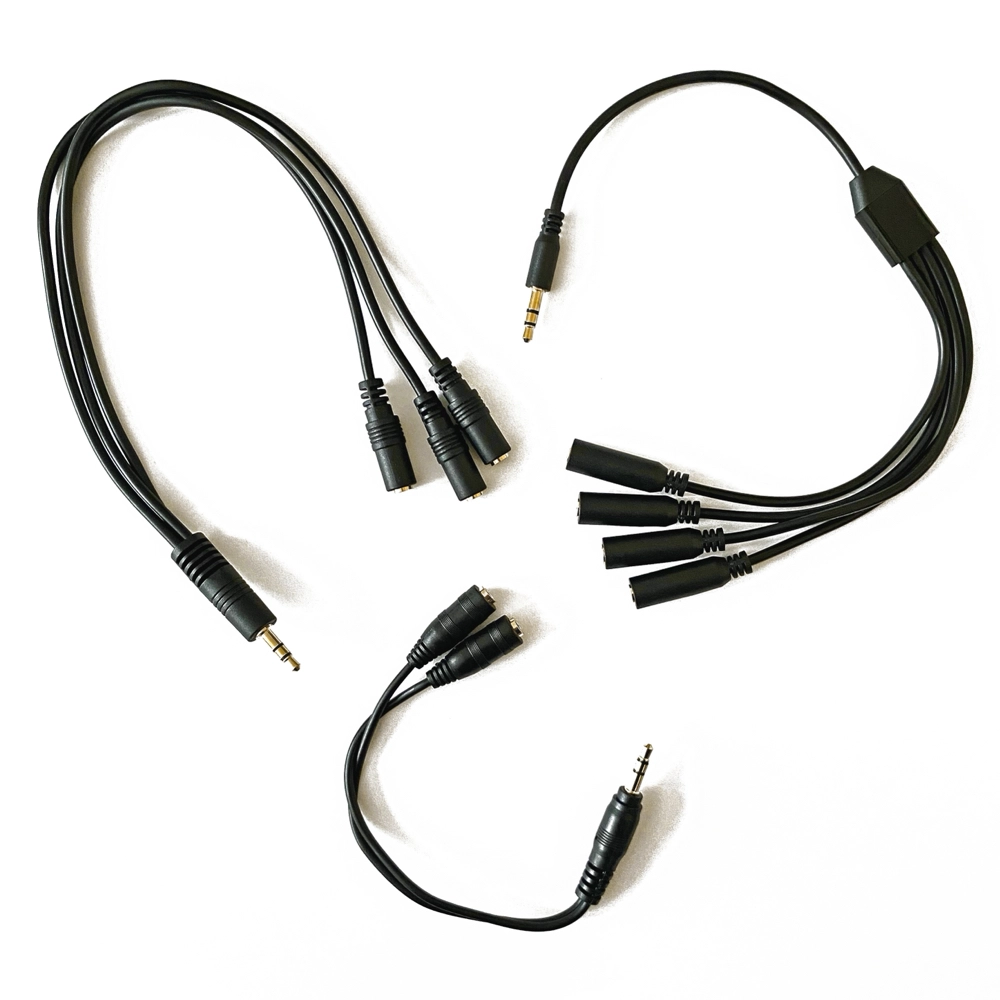

• Jack splitter, to connect up to 4 headphones

In any case

• If you have any questions at all, contact me!

Photos, videos, components, colors, versions, etc. are non-contractual.
