Exten'Son

Additional information

The board is bare: no wire or push button. Feel free to contact me if you need references.

To make it work, connect "Adkey" to the "Exposi'Son" module, and one or more push button(s) of your choice to one of the 10 screw terminals.

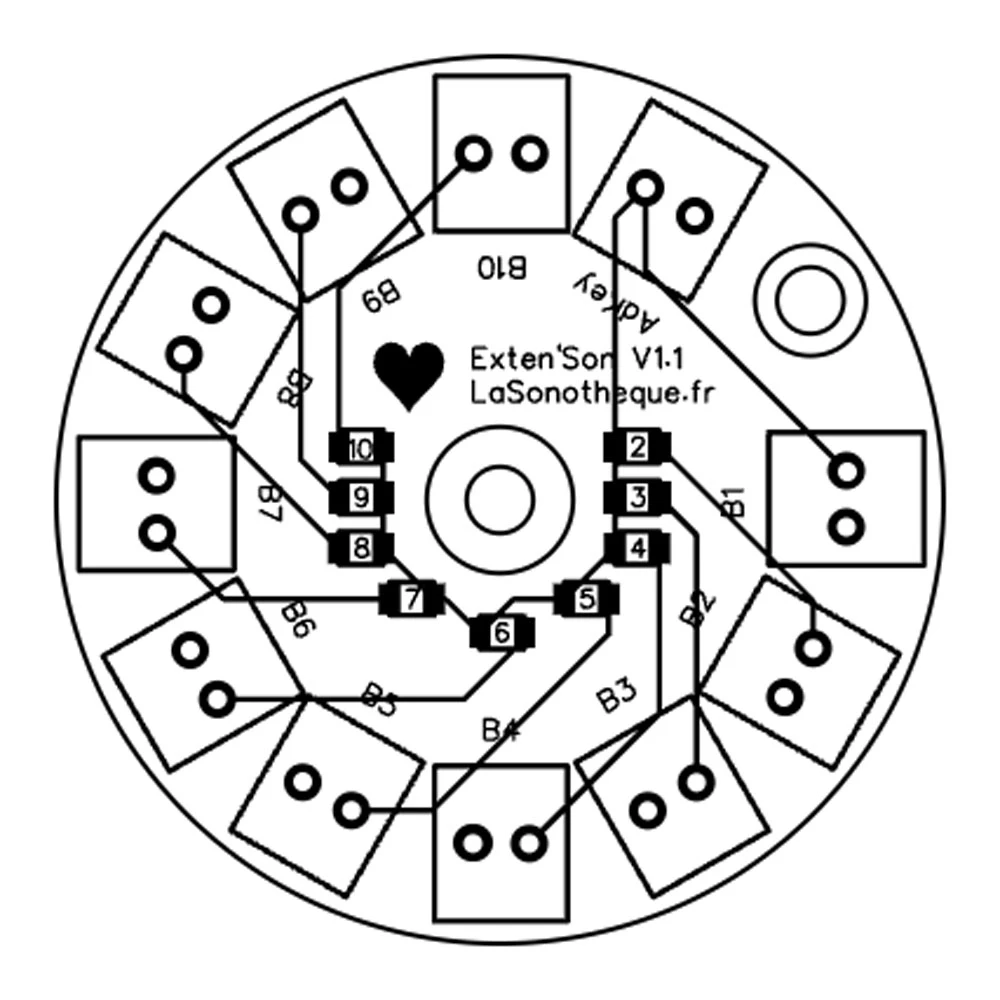

It is round and has the same dimensions as the Exposi'Son: 40x40 mm.

In detail

Connect this board's "Adkey" to "Adkey 1" on your "Exposi'Son" module to:

• B1: Play file 1 on short press (<1s) / Loop file 1 on long press (>1s)
• B2: Play file 2 / Loop file 2
• B3: Play file 3 / Loop file 3
• B4: Play file 4 / Loop file 4
• B5: Previous file / Volume -
• B6: Next file / Volume +
• B7: Play current file / Pause
• B8: Loop all files / Pause
• B9: Not usable on Exposi'Son
• B10: Playback mode: Interruptible or Non-interruptible

Connect this board's "Adkey" to "Adkey 2" on your "Exposi'Son" module to:

• B1: Play file 5 on short press (<1s) / Loop file 5 on long press (>1s)
• B2: Play file 6 / Loop file 6
• B3: Play file 7 / Loop file 7
• B4: Play file 8 / Loop file 8
• B5: Play file 9 / Loop file 9
• B6: Play file 10 / Loop file 10
• B7: Play file 11 / Loop file 11
• B8: Play file 12 / Loop file 12
• B9: Play file 13 / Loop file 13
• B10: Play file 14 / Loop file 14

Photos, videos, components, colors, version, etc.: non-contractual.
