Télé’Son (Kit)

Additional information

All types of projects are possible. Need advice (feasibility, choosing a version and options, build process, suggestions, questions...): contact me. If you want hands-on help with your build, I can host you in my workshop.

Even though my board is simplified as much as possible, you still need to have a soldering iron. Knowing how to program the Nano isn’t required, but it is necessary if you want a customized result.

In detail

Warning

The module is sold without an enclosure. You must install it properly inside your old phone before powering it, to avoid any risk of a short circuit.

Listening

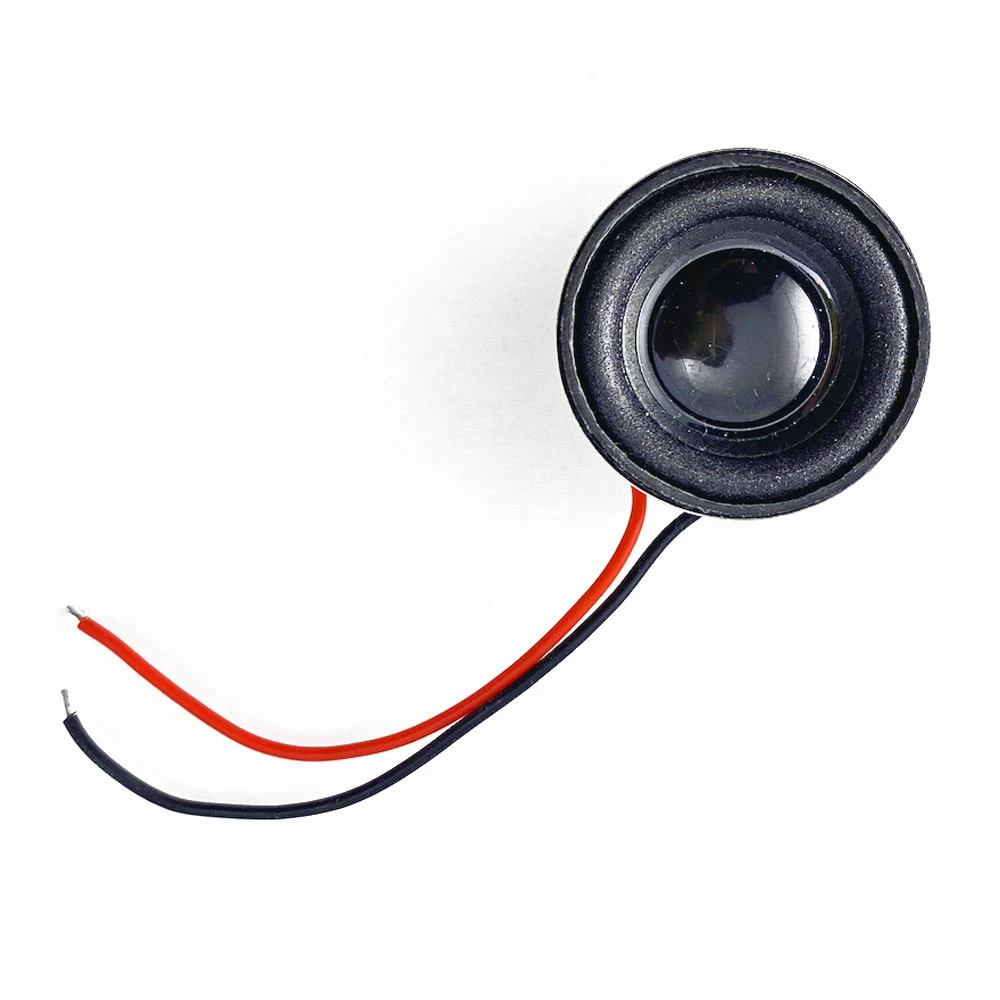

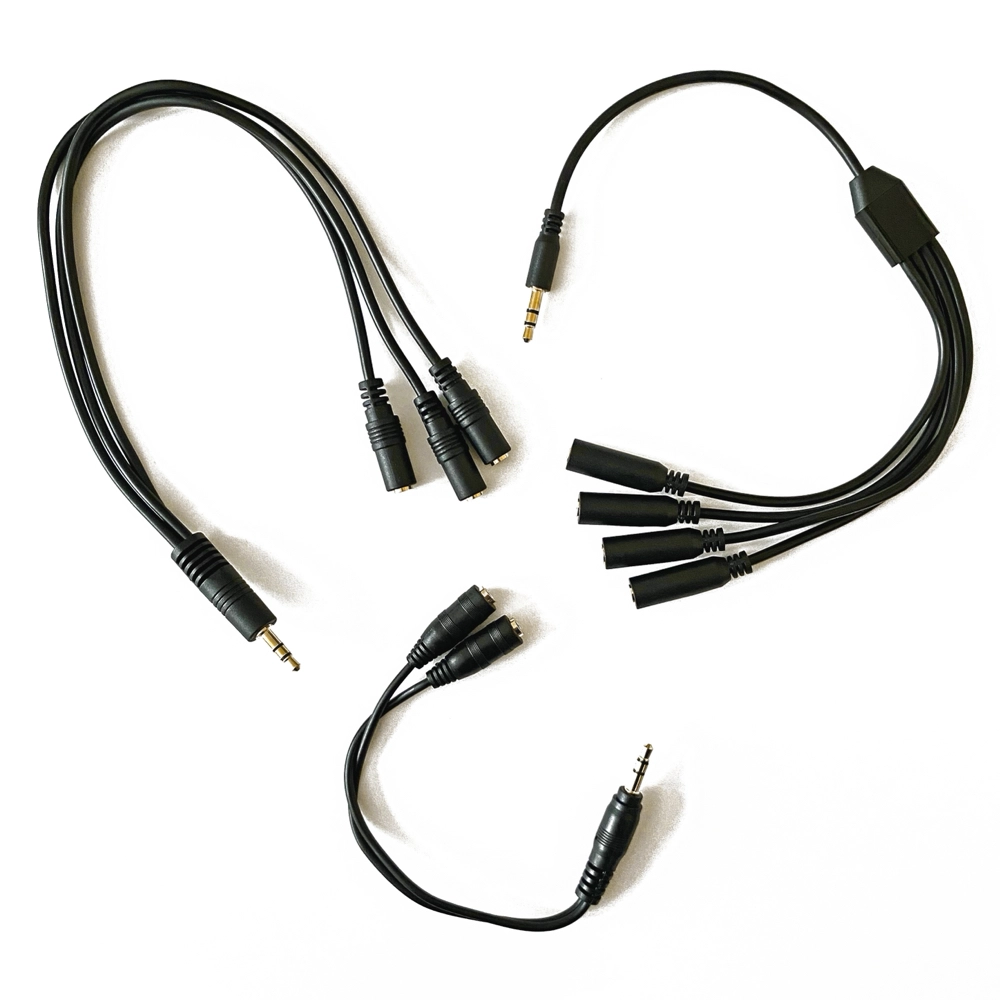

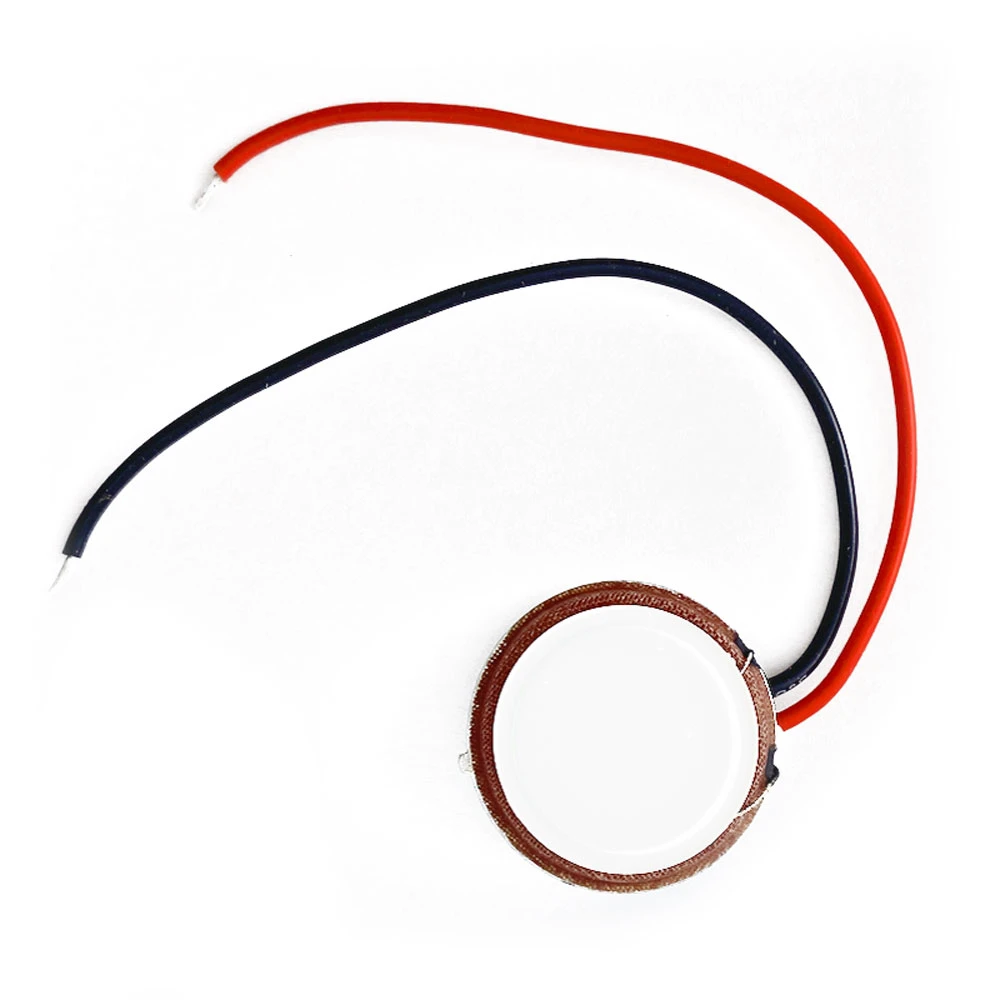

Listening is usually done through the handset (mono). If your phone has one, you can also plug in the earpiece (also mono). But you can also connect one or more headphones, or even an external amplifier, to the "Line" mini-jack output (stereo). A second jack (mono) labeled "3W" can power a 3-watt speaker at 8 ohms.

Push-button keypad or rotary dial

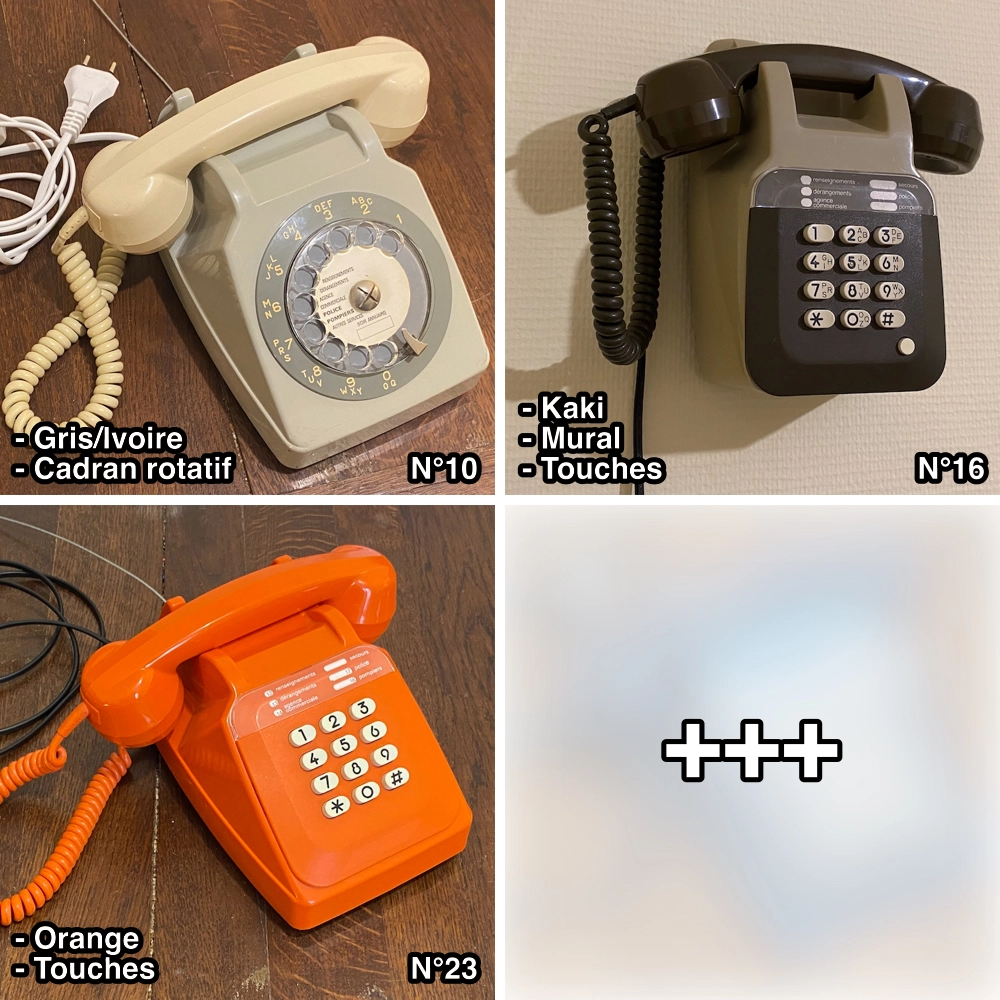

A Socotel S63 can have either a rotary dial or a push-button keypad. My board includes a small DIP switch bank, and switch #6 selects between rotary dial (switch 6 down) and push-button keypad (switch 6 up).

No ringer

The Télé'Son Kit does not support using the ringer. It would require AC power, which would be too dangerous for hobbyists. If that’s essential to you (your ears?), buy my fully assembled, ready-to-use Télé'Son units instead, as they do support it.

Power

The board can be powered from a wall adapter, batteries, rechargeable cells, or a car cigarette lighter, between 7 and 12 volts, via a standard DC barrel plug (5.5 mm x 2.1 mm, aka "DC5521").

Technical specifications

• User manual
• Storage: microSD card (sold separately), up to 32 GB
• Formats: .mp3 (preferred) and/or .wav (max 48 kHz / 16-bit)
• Channels: mono (amplified 3W) and stereo (Line)
• Sensitive to humidity and rain: use indoors or keep well protected.
• Handmade by me.

Sold separately (optional)

• MicroSD card, to store your files

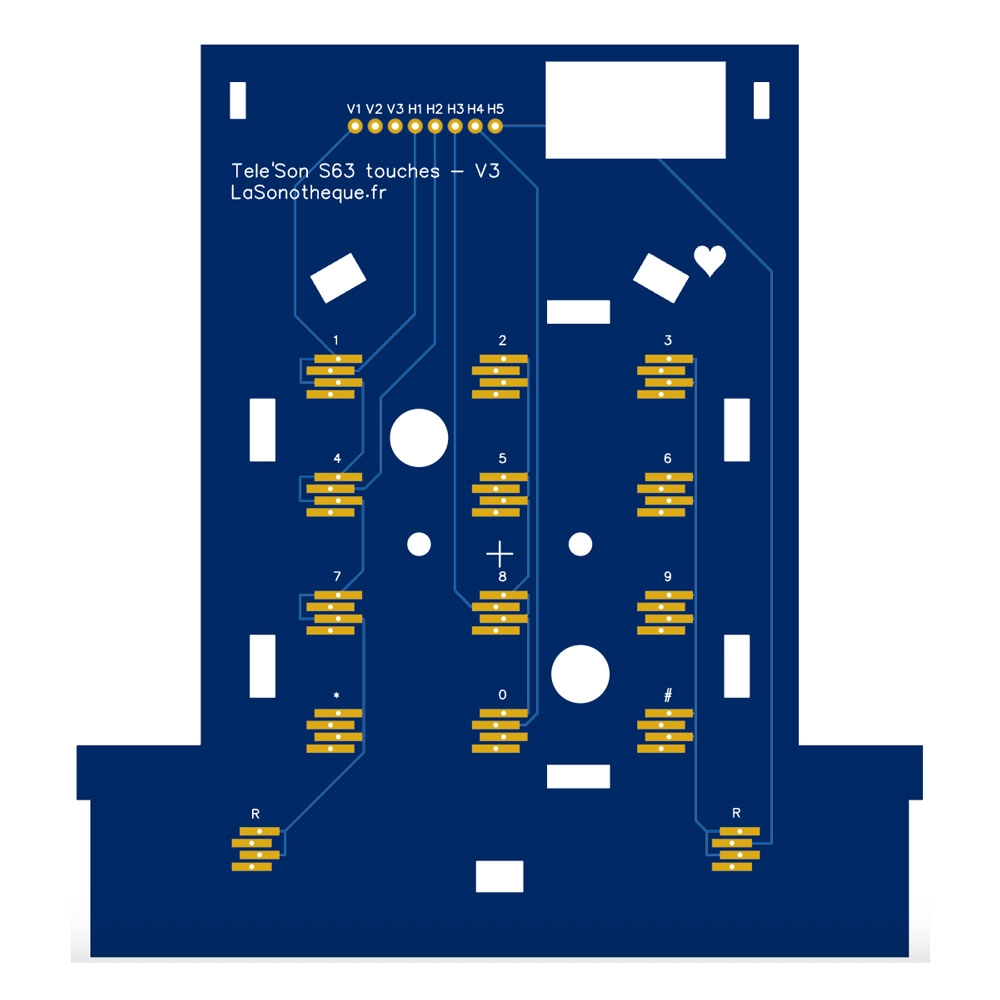

• An S63 keypad board for certain non-matrix push-button keypads on the Socotel S63

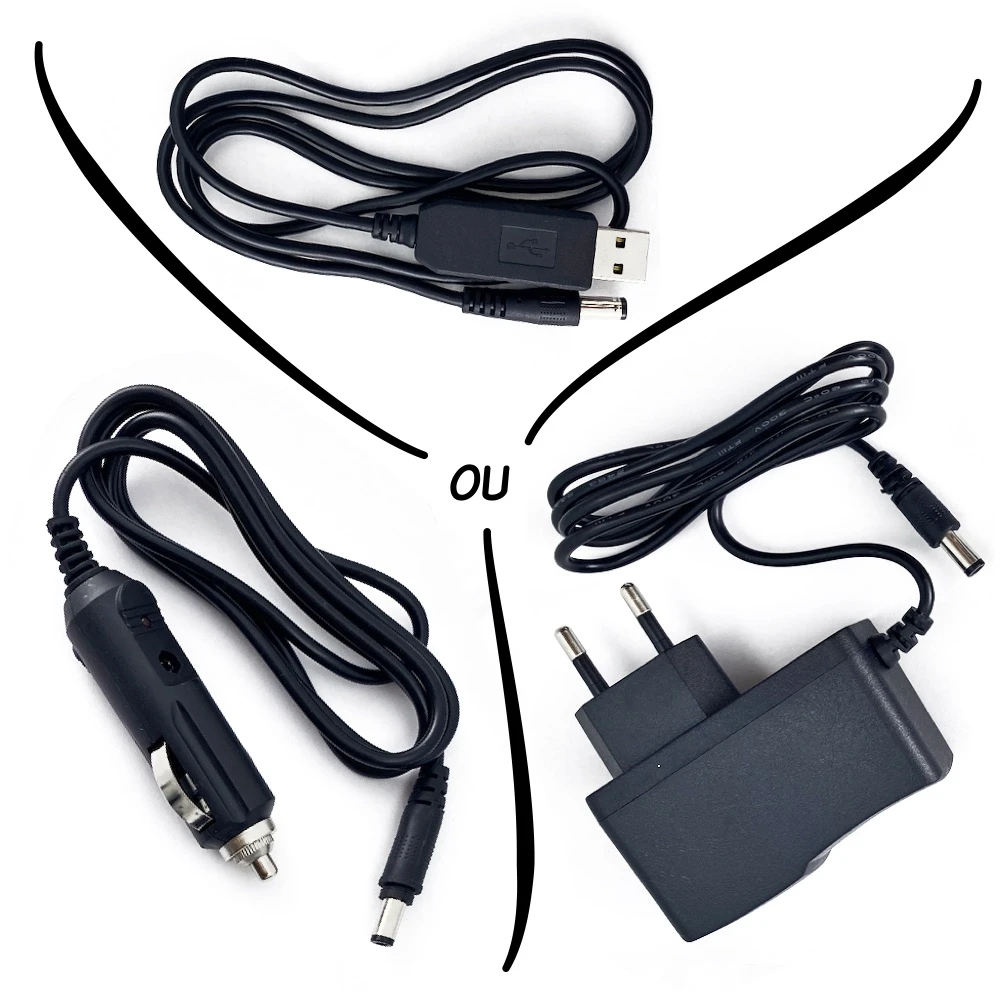

• DC power supply, to power your Télé'Son

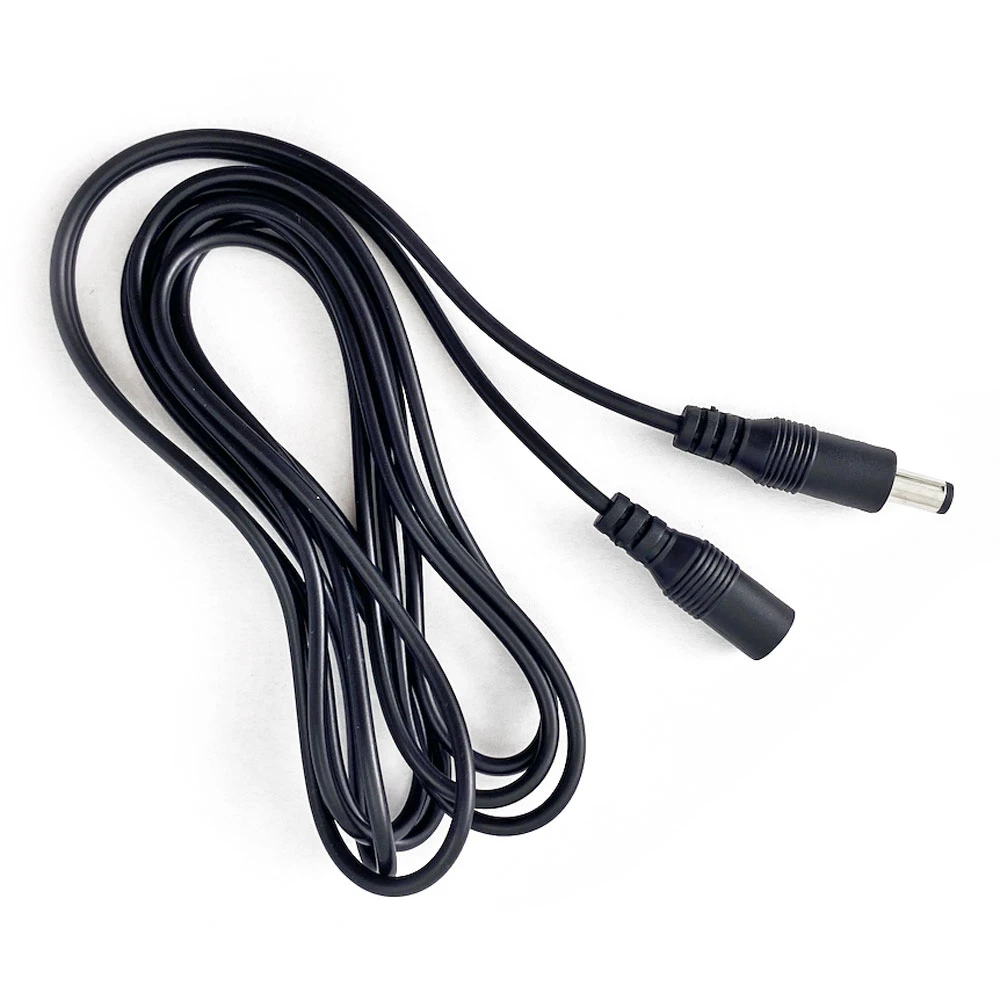

• DC power extension cable, to extend the distance between the power supply and the Télé'Son

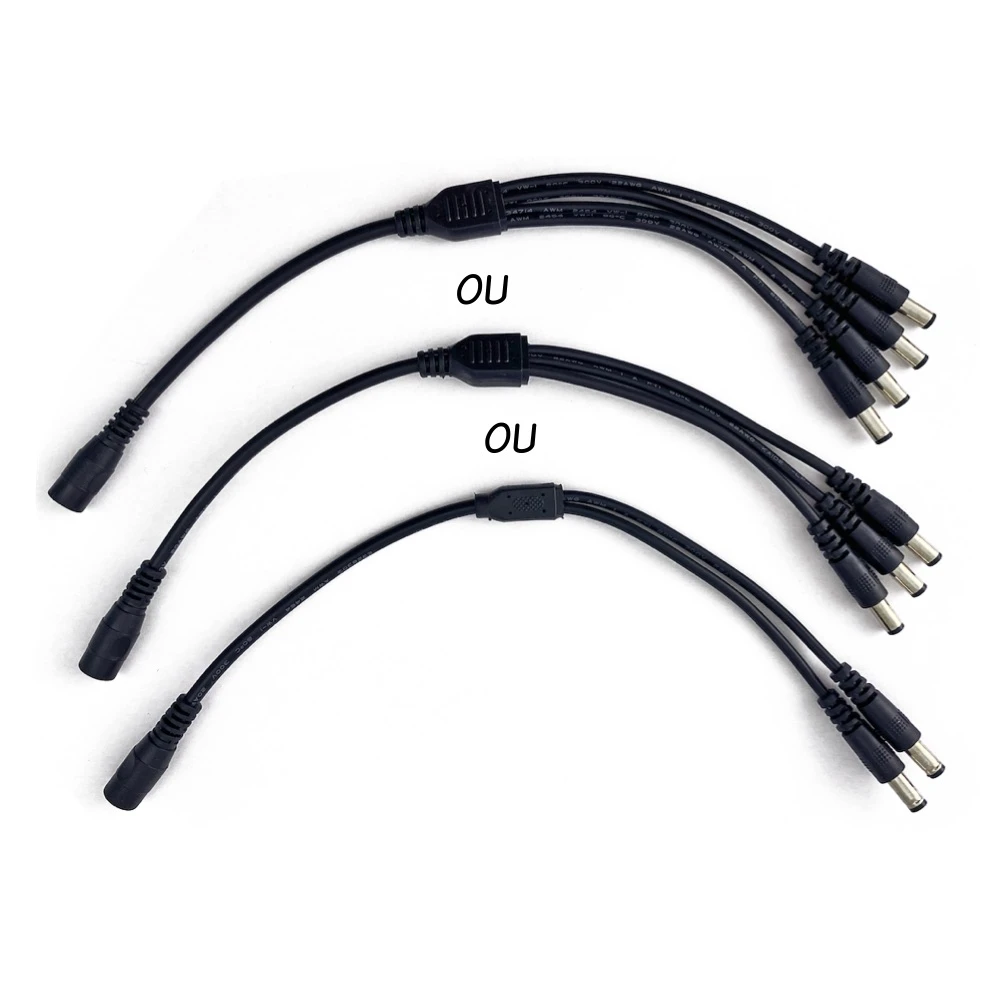

• DC splitter, to connect multiple Télé'Son units to a single power supply

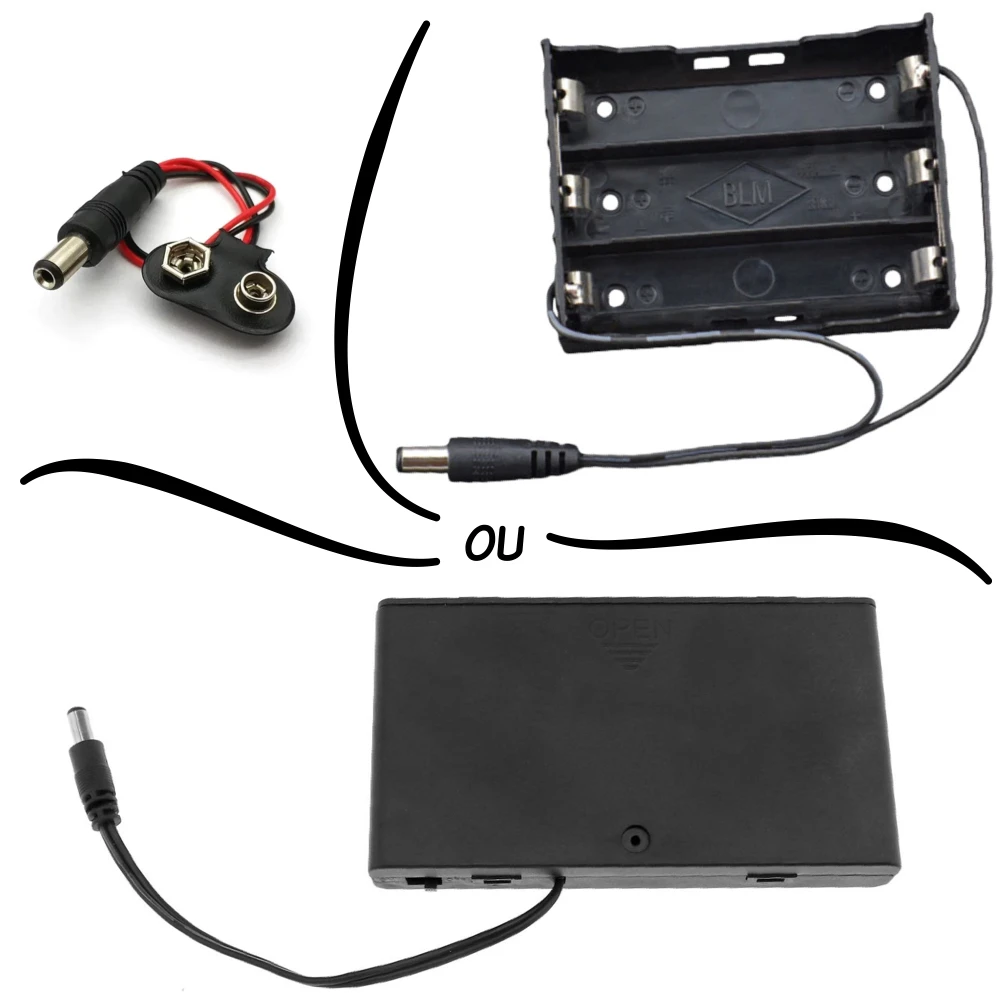

• Battery holder, to power it with batteries or rechargeable packs

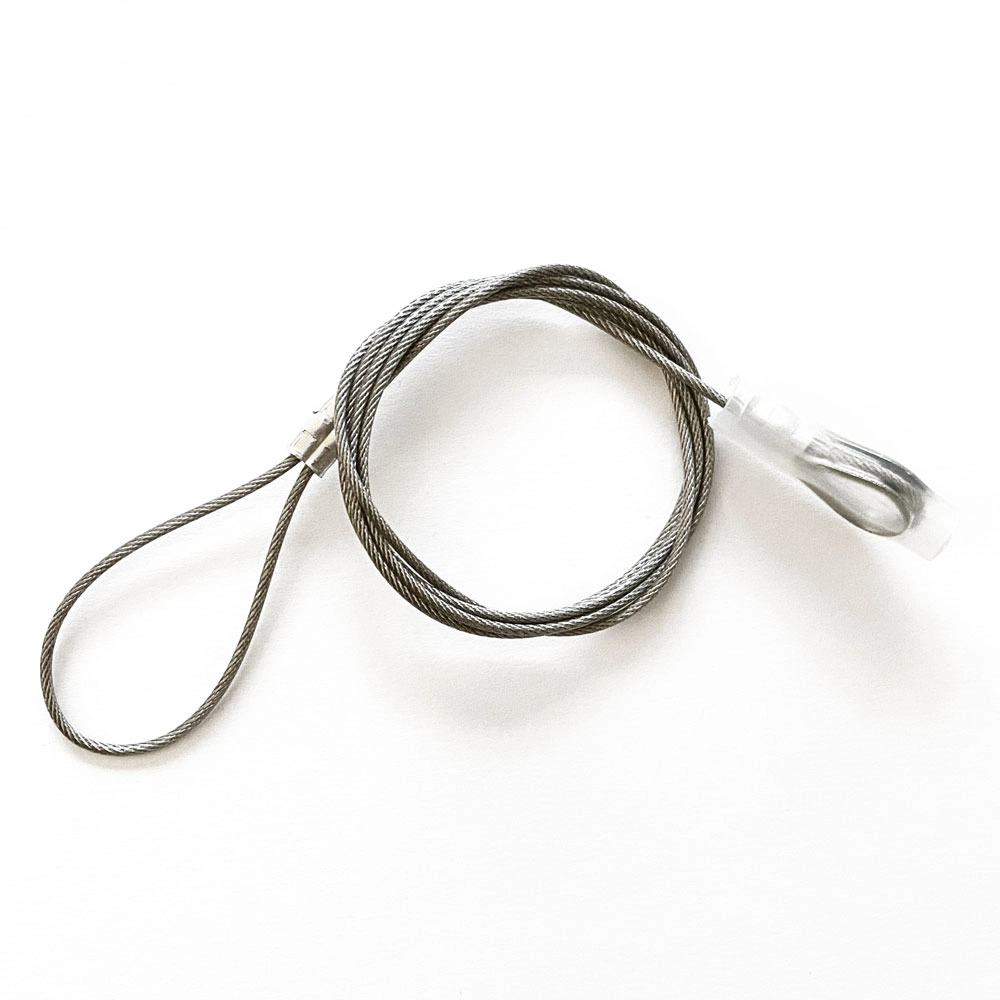

• A security lock for the "tabletop" versions of the Télé'Son S63

No matter what

I designed the device end-to-end: from the PCB layout all the way to soldering the components. It is built by my own hands.

So if you have any issues, questions, or if you need modifications related to your project, contact me.

Photos, videos, components, colors, version, etc.: for reference only and not contractually binding.
