True Peak Limiter

True peak is the highest amplitude of the Audio Waveform that goes above the threshold, and when the same is compressed, it can cause distortion. You cannot hear the distortion when it is not compressed. But the moment you compress the file, the audio starts producing distortion artefacts which ruin the mix.

True Peak Limiter 1

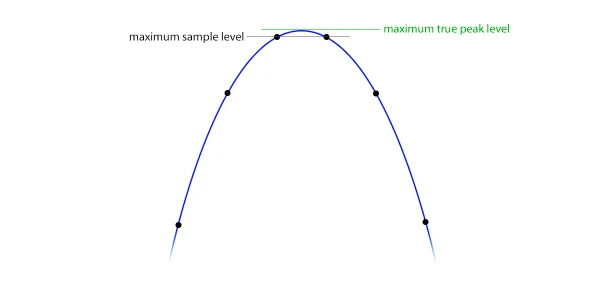

This image illustrates that the analog signal (blue) has a peak (green) higher than the sample peaks in the digital signal. Peaks like these are called inter-sample peaks or true peaks. Today, many commonly used metering/loudness standards, like EBU R128 or ATSC A/85, impose a maximum allowed true peak level

Significance of True Peak Limiters

Preserving Audio Quality

True peak limiters are crucial for maintaining audio quality during the mastering process. They prevent clipping and distortion that can occur if the audio exceeds the maximum peak level. The difference between regular audio limiter and true peak limiters is huge.

Adherence to Standards

Many broadcasting standards and online platforms have specific true peak-level requirements. True peak limiters help ensure the audio meets these standards, making it suitable for broadcast and distribution.

Transparency in Limiting

True peak limiters aim for transparent limiting, which minimizes the audible impact while successfully managing peak levels. This is especially crucial in mastering when the integrity of the original audio is important.

Mastering Audio Dynamics

Excessive dynamic range can make keeping an even volume difficult, making sections of the music overly quiet or too loud. Compression and limiting help to balance these dynamics, resulting in a pleasant and controlled listening experience.

Adherence to Broadcasting Standards

Adherence to broadcasting standards is critical for maintaining audio content compatibility across several platforms and devices. True peak limiters assist in meeting the true peak level requirements mentioned by these standards, ensuring a consistent broadcasting experience.

Difference Between Peak and True Peak

The peak is the highest amplitude of your audio waveform in Decibel's full scale(DBFS). True peak is a more refined and accurate measurement of the peak amplitude that considers the potential inter-sample peaks.

Inter-sample peaks occur when the audio waveform reaches levels between the discrete digital samples representing the continuous analog audio signal. True peak limiting stops these inter-sample peaks from producing distortion during conversion. The process contains the oversampling temporarily to analyze the changes of volume in peaks of the sample.

True Peak Limiter 2

How to Choose the Right True Peak Limiter

Selecting the right True Peak Limiter is a crucial decision for audio professionals. Different True Peak Limiters may offer varying features and levels of transparency. Here are some factors to consider:

Transparency

A good True Peak Limiter should operate transparently, meaning its limiting action is imperceptible to the listener. Testing a True Peak Limiter with various audio sources and listening critically is essential to assess its transparency.

User Interface

The ease of use and user interface of the True Peak Limiter can significantly impact the workflow of audio professionals. Look for a Limiter with an intuitive interface that allows for precise control.

Compatibility

Ensure your True Peak Limiter is compatible with your audio production software or hardware. Compatibility issues can disrupt the production process.

Additional Features

Some True Peak Limiters offer additional features such as oversampling, lookahead processing, and dithering options. These features can further enhance the quality of audio processing.

Decibels True Peak (dBTP)

Decibels True Peak (dBTP) is a measuring unit used to quantify the peak intensity of an audio signal while considering inter-sample peaks that can occur during signal processing or playback. Given the complexity of digital audio, it delivers a more realistic portrayal of peak levels. Ensure that the true peak limiter you are going with uses these sets of metrics so that you have enhanced levels of accuracy.

Best True Peak Limiters

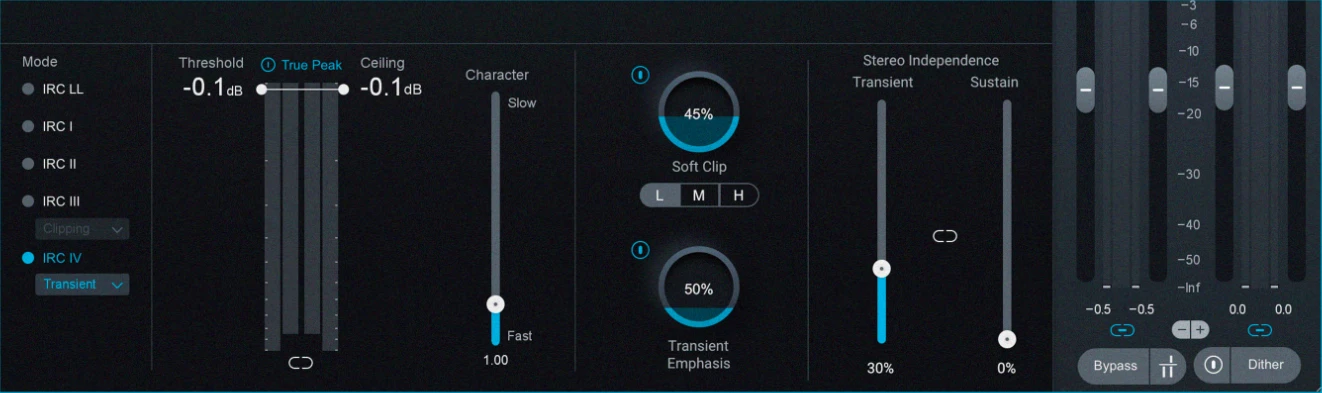

Izotope Ozone True Peak Limiter

Izotope ozone, a true peak limiter, has been recognized for having modern audio mastering talents. Throughout the digital-to-analog conversion process, the Ozone True Peak Limiter ensures audio meets loudness standards and avoids inter-sample peaks.

True Peak Detection

The plugin uses extremely precise algorithms to identify genuine peaks that may appear in an audio signal's digital samples. The possibility of inter-sample peaks that could cause clipping or distortion in the analogue output is made more visible.

Transparent Limiting

The Ozone True Peak Limiter is made to offer transparent limiting, which means it reduces gain in a way that minimizes audible artefacts and maintains the audio signal's natural nature.

Adjustable Threshold and Ceiling

Users can set the appropriate true peak threshold and ceiling levels to achieve particular volume requirements or prevent undesirable clipping. Due to its flexibility, its limiting behavior can be tailored to meet the needs of various projects.

Oversampling

The oversampling technique, which is used to temporarily raise the sample rate of the audio signal during processing, is used by the plugin. This improves actual peak detection accuracy and ensures a more precise limiting procedure.

Intuitive Interface

Like the other parts of the Ozone suite, the True Peak Limiter has a user-friendly interface that makes it simple for engineers and producers to monitor and manage the limiting process.

True Peak Limiter 3

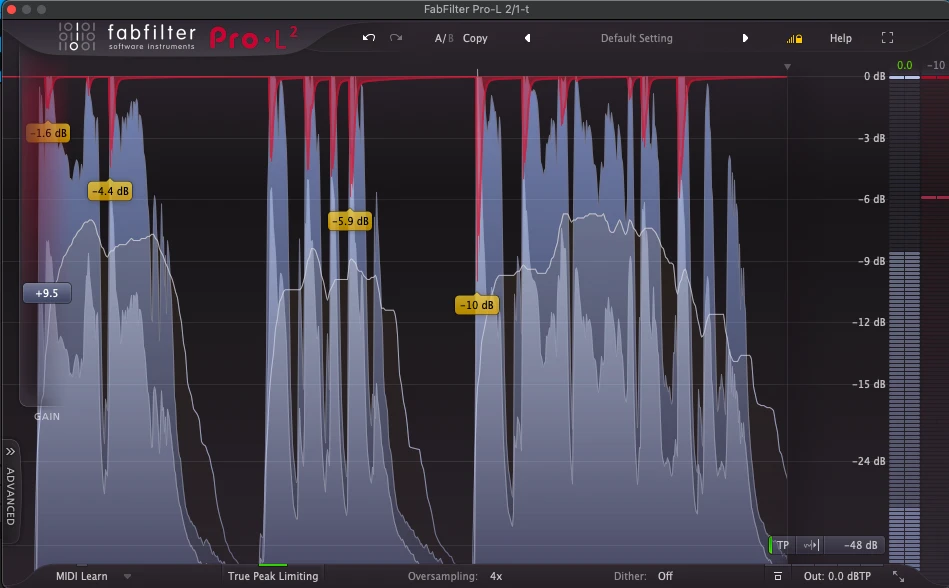

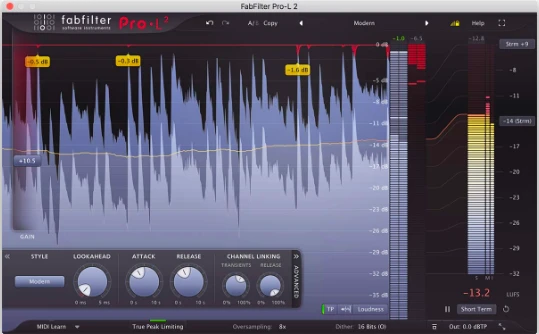

Fabfilter Pro L-2

An advanced true peak limiter plugin, FabFilter Pro-L 2, was created by FabFilter, a reputable audio software firm renowned for its creative and high-quality plugins. To ensure accurate and transparent peak limiting Pro-L 2 is the successor to the original Pro-L limiter for various audio applications.

Key features of the FabFilter Pro-L 2 include

True Peak Limiting

Pro-L 2 incorporates accurate, true peak detection and limiting to prevent inter-sample peaks and avoid potential distortion during digital-to-analog conversion.

Transparent and Intelligent Algorithms

Transparent limiting methods used by the plugin work to reduce gain in a way that minimizes audible artefacts while preserving the audio signal's natural character. Pro-L 2 has intelligent characteristics that enable it to modify its behavior following the audio content, producing the best results with a minimum manual adjustment.

Multiple Limiting Styles

Pro-L 2 offers various limiting styles, such as Transparent, Allround, Aggressive, and Bus, allowing users to choose the appropriate style based on their specific requirements and audio content.

Look-Ahead and Attack/Release Control

Look-ahead capability offered by the plugin analyses the audio signal in advance to predict peak levels and apply limits appropriately. Users can also change attack and release times to fine-tune the limiting behavior and adapt it to other musical genres and styles.

Loudness Metering

In-depth loudness metering is a feature of Pro-L 2, which offers detailed data on loudness levels, real peak levels, and loudness range (LU, LUFS, LRA). Users can use this to guarantee adherence to various loudness guidelines and broadcast laws.

Highly Customizable Interface

Like other FabFilter plugins, Pro-L 2 offers a visually appealing and highly customizable interface. Users can resize the interface, choose between different color schemes, and access advanced settings for in-depth control.

True Peak Limiter 4

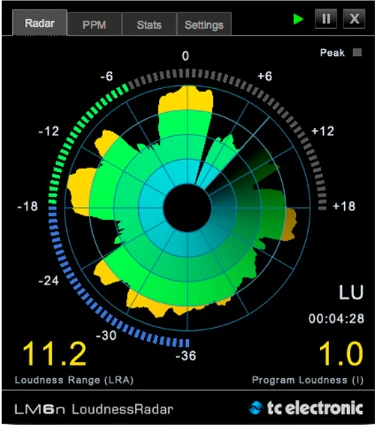

TC Electronic Lm2n

The TC Electronic LM2n is a professional loudness and true peak meter designed for broadcast, post-production, and mastering applications. The LM2n belongs to the line of Loudness Radar meters made by TC Electronic, well-known in the audio industry for their precise loudness measuring and monitoring capabilities.

Key features of the TC Electronic LM2n include.

Loudness Measurement

According to many loudness standards, including ITU BS.1770-4, EBU R128, ATSC A/85, the LM2n offers thorough loudness measurement. Users can check for broadcasting and streaming standards compliance by monitoring integrated, momentary, short-term, and true peak loudness levels.

True Peak Detection

To identify potential inter-sample peaks that might pop up during the digital-to-analog conversion process, the LM2n integrates exact true peak detection. To prevent clipping and ensure that audio signals don't exceed the highest peak level permitted in the analogue domain, true peak limitation is crucial.

Loudness Radar Display

The Loudness Radar display offers an intuitive way to track changes in loudness and make immediate adjustments to audio levels due to its unique visual representation of loudness over time.

Logging and Reporting

The LM2n can log loudness data over time, allowing users to generate reports documenting loudness compliance for different audio content.

Hardware Integration

The LM2n can be integrated into hardware setups, making it suitable for broadcast control rooms and production studios.

Multiple Audio Interfaces

The device supports various audio interfaces, allowing seamless integration into different audio systems and workflows.

True Peak Limiter 5

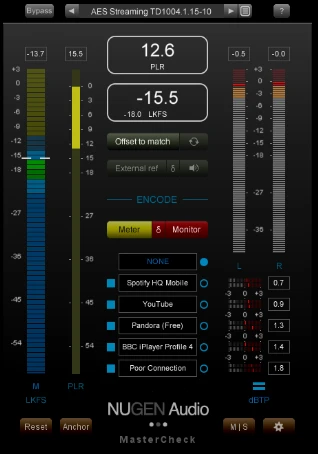

Nugen Audio Mastercheck Pro

Nugen Audio MasterCheck Pro is a potent audio plugin that allows complete loudness and codec auditioning for music creation, broadcast, and mastering applications.

Key features of Nugen Audio MasterCheck Pro include.

Loudness Measurements

MasterCheck Pro provides loudness measurement following several standards, such as ITU BS.1770, EBU R128, and ATSC A/85. Users can evaluate their audio content's integrated, fleeting, and short-term loudness levels to ensure it complies with broadcast standards and loudness goals.

True Peak Detection

The plugin has real peak detection to identify inter-sample peaks and avoid clipping during digital-to-analog conversion. MasterCheck Pro helps prevent potential distortion problems and ensures that audio signals stay within allowable bounds by identifying genuine peaks.

Codec Auditioning

MasterCheck Pro's capability to simulate how audio would sound after different encoding and decoding methods is one of its notable features. Users can listen to their audio through various codecs and streaming platforms, including MP3, AAC, Spotify, YouTube, etc.

To avoid unpleasant surprises brought on by codec artefacts, this helps content producers in optimizing their audio for particular distribution platforms.

Loudness Matching

MasterCheck Pro ensures that the loudness level of different tracks or versions is constant by allowing loudness matching across diverse audio sources. This is especially helpful for assembling playlists or albums into a seamless listening experience.

Dynamic Range Analysis

The limiter plugin's dynamic range analysis delivers insights into the audio content's dynamics. This enables users to assess how loud and sensitive elements in their music or creations are balanced.

Compliance Reporting

Professional audio engineers can easily document and confirm loudness compliance using MasterCheck Pro's comprehensive reports on compliance that can be exported and shared.

True Peak Limiter 6

Conclusion

In conclusion, understanding the distinction between peak and true peak levels is essential for audio professionals. True peak levels account for inter-sample peaks that can result in distortion during conversion, so choosing a suitable True Peak Limiter is crucial.
