In the field of industrial maintenance and technical inspections, early detection of anomalies is essential to avoid costly failures and ensure the safety of installations. Among emerging technologies, acoustic cameras stand out by offering an innovative approach: they allow users to "see" sound. Developed by multiple manufacturers specializing in diagnostic and maintenance solutions, these cameras are transforming how technicians analyze mechanical, electrical, and pneumatic installations.

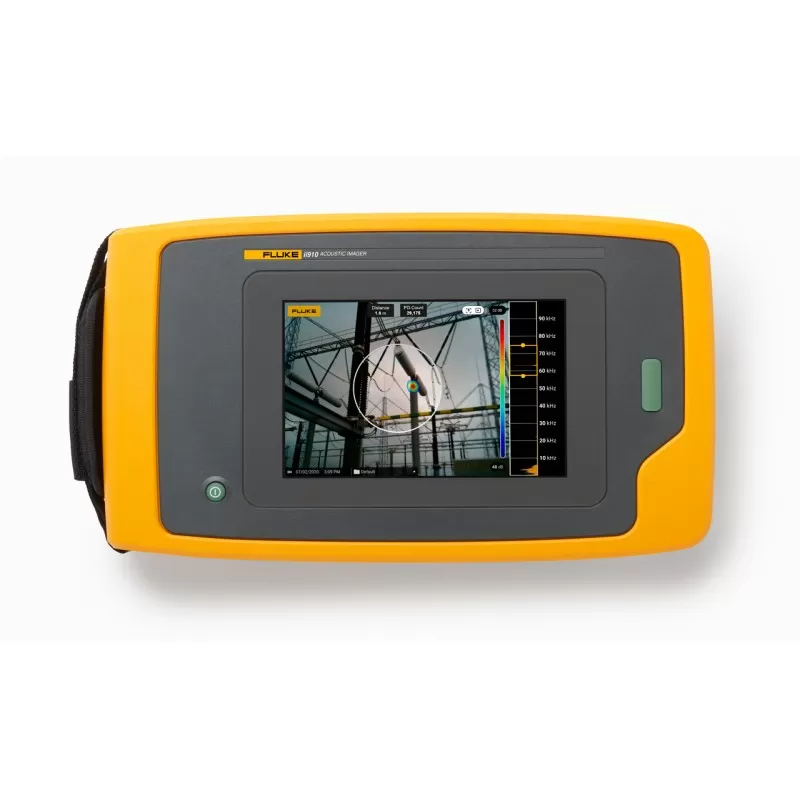

What is an Acoustic Camera?
An acoustic camera is a device that combines a high-sensitivity microphone array and an imaging system to capture and visualize sound waves. Using advanced algorithms, these cameras transform sound signals into a graphical representation superimposed on a visual image, allowing precise identification of abnormal noise sources.
The principle is similar to thermal imaging, but instead of detecting temperature variations, these cameras detect acoustic pressure variations. Their ability to pinpoint sound sources makes them particularly useful for detecting compressed air leaks, performing electrical inspections, and conducting mechanical analyses.
Industrial Applications of Acoustic Cameras
Thanks to their precision and ease of use, acoustic cameras are employed in various industrial sectors. Here are some of their key applications:
- Detection of gas and compressed air leaks: In many industrial facilities, compressed air leaks lead to significant energy losses. An acoustic camera can instantly identify leak points, even in noisy environments, by filtering out background frequencies.
- Mechanical system diagnostics: Acoustic cameras can detect anomalies such as worn bearings, cavitation in pumps, or misalignment by capturing the specific acoustic signatures of these failures.
- Electrical equipment inspection: When an electrical component deteriorates, such as partial discharges or insulation defects, it emits characteristic sounds that these cameras can detect well before a failure occurs.
- Infrastructure monitoring: In transportation and large infrastructure, acoustic cameras are used to monitor structural integrity, detecting cracks that are invisible to the naked eye through the sounds they generate under stress.
How Do These Cameras Work?
Acoustic cameras rely on several technologies to ensure precise detection:
- Microphone arrays: They often incorporate dozens (sometimes over a hundred) of microphones arranged on a surface to capture sounds from different directions and triangulate their origin.
- Advanced signal processing: Built-in algorithms isolate relevant sounds based on their frequency and intensity, filtering out industrial background noise.
- Superimposed sound imaging: The generated acoustic image is displayed as a heat map, with colors indicating the relative sound intensity in different observed areas.
The most advanced models also include analysis and reporting tools, facilitating result interpretation and integration into preventive maintenance programs.
Advantages of Acoustic Cameras
The adoption of acoustic cameras in the industry presents several significant advantages:
- Time savings: Unlike traditional methods, which require manual detection or the use of point sensors, an acoustic camera can immediately identify the source of a problem.
- Cost reduction: By detecting leaks or mechanical anomalies early, these cameras help prevent energy losses and reduce the risk of costly breakdowns.
- Ease of use: Most modern models feature an intuitive interface, requiring minimal training to operate effectively.
- Versatility: Suitable for both indoor and outdoor use, these cameras can be applied across various industrial sectors, including energy, transportation, and aerospace.
Future Developments
With advancements in artificial intelligence and signal processing, acoustic cameras continue to evolve. Manufacturers are now integrating advanced features such as automatic fault recognition and connectivity with IoT-based predictive maintenance systems.
The development of increasingly sensitive sensors and miniaturized models opens the door to even more diverse applications, including environmental monitoring and industrial safety.
Conclusion
Acoustic cameras represent a major technological advancement in industrial maintenance and diagnostics. By allowing technicians to identify and analyze anomalies invisible to the naked eye, they help improve equipment reliability and optimize energy consumption in facilities.
Have you ever had the opportunity to use an acoustic camera in your field? What challenges or opportunities do you see in this technology?
